Details of the wire gate
When you need a livestock gate that delivers both strength and reliable containment, the Combo Gate is built to perform. Designed to serve as an effective barrier for both small and large animals, this heavy-duty gate features a high-tensile tubular steel frame rated at 58,000 PSI, making it a dependable choice for demanding farm and ranch environments.
Each Combo Gate comes complete with a secure latching chain and heavy-duty mounting hinges for straightforward installation and consistent daily use. Plastic-capped posts enhance safety by eliminating sharp edges, while the baked-on powder-coat finish provides long-term protection against rust, corrosion, and weather exposure.
Ideal for pastures, pens, driveways, and livestock enclosures, the Combo Gate offers long-lasting durability, low maintenance, and dependable animal control. Its rugged construction and weather-resistant finish make it a smart investment for ranchers and property owners seeking a durable, professional-grade livestock gate that performs reliably year after year.
Heavy-Duty Ranch Entrance & Livestock Barrier Combo
Engineered for ranches, pastures, and property entrances, this heavy-duty livestock access combo delivers unmatched convenience and containment. Featuring the rugged HiQual Combo Gate with Mesh Panel alongside premium steel cattle guard options, you get a seamless system that keeps livestock secure while allowing vehicles to pass without manual gating. Built for durability and smooth everyday use, this product pairing combines reliable livestock deterrence with rugged construction that stands up to weather and constant traffic.
This solution is ideal for landowners, ranchers, and agricultural operations who value efficiency, safety, and long-lasting infrastructure. The mesh-panel gate provides a versatile livestock control point, and paired with a robust cattle guard, you eliminate the daily hassle of opening and closing traditional gates.
| Feature | Specs / Options |
|---|---|
| Gate Heights | 48" Standard Height |
| Gate Sizes & Weights | 4′ (32 lbs), 6′ (45 lbs), 8′ (56 lbs), 10′ (69 lbs), 12′ (80 lbs), 14′ (90 lbs), 16′ (101 lbs) |
| Gate Construction | 16-gauge tubular steel with welded mesh panel |
| Mesh Panel | Recessed safety mesh with narrow vertical openings |
| Cattle Guard Options | Multiple heavy-duty steel guards from ~6′ to ~12′+ lengths |
| Load & Traffic Capability | Designed for private driveways to highway-rated applications |
The HiQual Combo Gate with Mesh Panel combines a secure tubular frame with built-in mesh safety paneling. Its square corners and balanced bar structure help prevent injury and offer reliable light confinement for cattle, goats, dogs, llamas, and other livestock. A secure latching chain and long-lasting hinges ensure years of dependable service with minimal maintenance.
Pair this resilient gate with a heavy steel cattle guard, such as a robust boxed or rated guard built to handle frequent vehicle crossings. These guards create a continuous livestock deterrent—no need to open and close a gate each time you enter or exit your property.
Gate Weights
| Length | Weight |
|---|---|
| 4' | 32 lbs |
| 6' | 45 lbs |
| 8' | 56 lbs |
| 10' | 69 lbs |
| 12' | 80 lbs |
| 14' | 90 lbs |
| 16' | 101 lbs |
Common Uses
Ranch & Farm Entrances: Eliminate gate cycling at high-traffic points while still keeping livestock secure.
Pasture Crossings: Facilitate seamless access between grazing areas and support heavy agricultural vehicles.
Driveway & Road Access: Ideal for private driveways and farm roads where livestock containment meets convenience. The cattle guard deters cattle without interfering with trucks, tractors, or trailers crossing the entrance.
Livestock Control Points: Most effective when livestock containment, safety, and traffic flow are all top priorities. Mesh panel construction improves visibility and reduces the risk of injury compared to barrel gates.

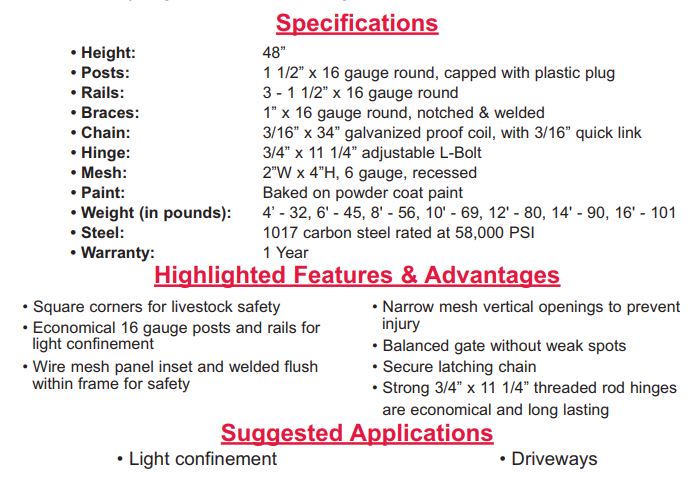

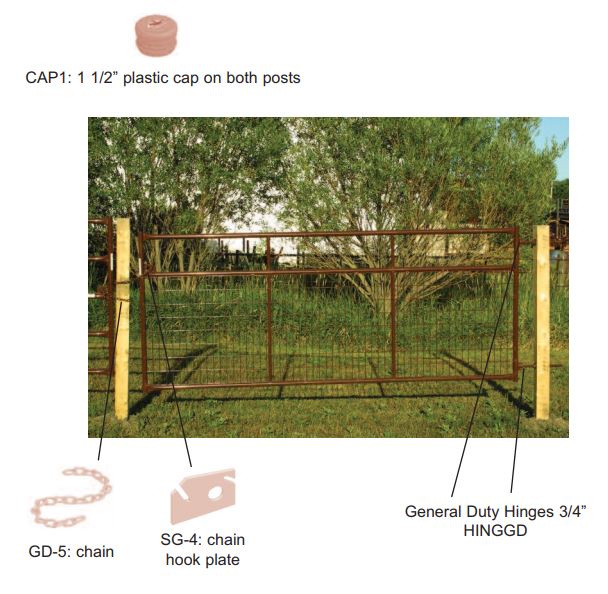

Wire-filled Gate Spec Sheet
Below are the specifications and weights for reference. Please note the quality of workmanship put into these strong, high-tensile steel products!
Safety Cap
Each gate comes with a 1-1/2" plastic safety cap for the tops of the vertical posts so you and your animals won't wind up scraping necks are arms! See the picture below, it's more than a flimsy cap, more like a strong plug that completely fills the entire diameter of the tubes.

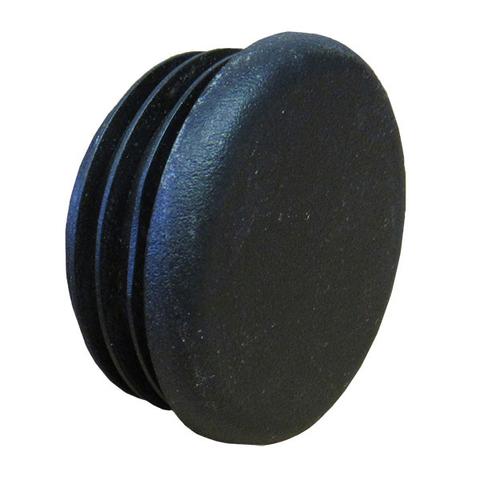

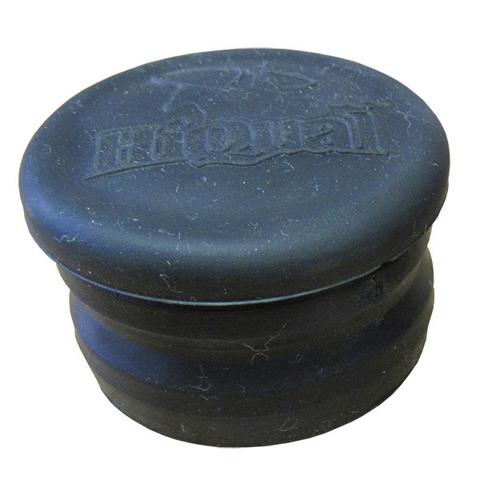

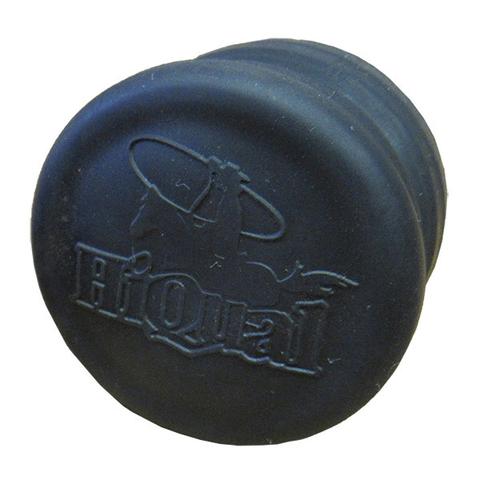

Pictures of the Gate Caps
Built with safety for animals and humans, these strong durable plugs protect from accidental scrapes and cuts
- 1-1/2" gate caps
- 2" gate caps
Wire Gate Video Review from Hi-Qual
HiQual manufactures a complete line of gates that fits all applications in the market. We start out with the combo gate, then offer the general-duty gate, the heavy-duty gate, the cattleman's gate, and finally the large super six gate. All of the HiQual gates have several things in common. We'll start with the combo and talk about some of those things.
Quality Construction All of our material is 1017 steel that we special order from our raw material from our suppliers. We specify that it has to be 1017 steel. The 1017 number refers to the amount of carbon that goes into the raw material and it's like making chocolate chip cookies if you will. Our competition put half a cup of chocolate chips and that's the normal steel that is used in the industry. It's referred to as 1010 and has a failure from a strike at 48,000 PSI. We special order 1017 so we get a full cup of chocolate chips. Ours have a high carbon content in our raw material giving us 58,000 PSI. What that means is the pressure must reach 58,000 pounds per square inch before the steel will fail! So ultimately, it sounds redundant, but we use stronger steel to make our gates and panels each year.
Our gates have square corners to keep them balanced. Why square corners? There are two big reasons: One is for safety because we don't want to create a dangerous choke or trap point at a connection between two panels or between a gate and the post it's hung on. Square corners are better because you're putting up a gate or a panel to create a barrier and ultimately, that barrier's going to get challenged some time. And if cattle, horses or livestock, or whatever you have been trying to go over or through that barrier, there's a good chance they can end up on top. The last thing we want to do is create the Valley of Death here so safety is foremost at HiQual and that's why square corners.
Another reason our gates are far superior is if you look at the competitors, they will take the frame of their gate or their panel and it starts out as one piece. It's put to the press and it's been conformed into the shape that they want. When that straight pipe is bent into a corner shape, it is pressed and that material on the outside of the corner is stretched. It may start out as 16 gauge, 20 gauge, or even 14 gauge, but once it's stretched, it becomes thinner and that becomes a weak point. That becomes the weak link and that's why is not a balanced product.
The other thing the HiQual does that our competitors don't do is create our completely welded,not tack welded, notched, and vertical support between our horizontal braces, or horizontal rails. What this does is give the product superior horizontal strength, again once that product is tested, either vertically or horizontally, the vertical welded support is going to give it much more strength and durability that our competition. Our competition likes to use the z-bar or even a lighter piece of material that's just tack welded and all that's doing is maintaining the spacing between the horizontal rails and giving that gator panel no additional strength.
So those are the things that are common in all the gates and panels.

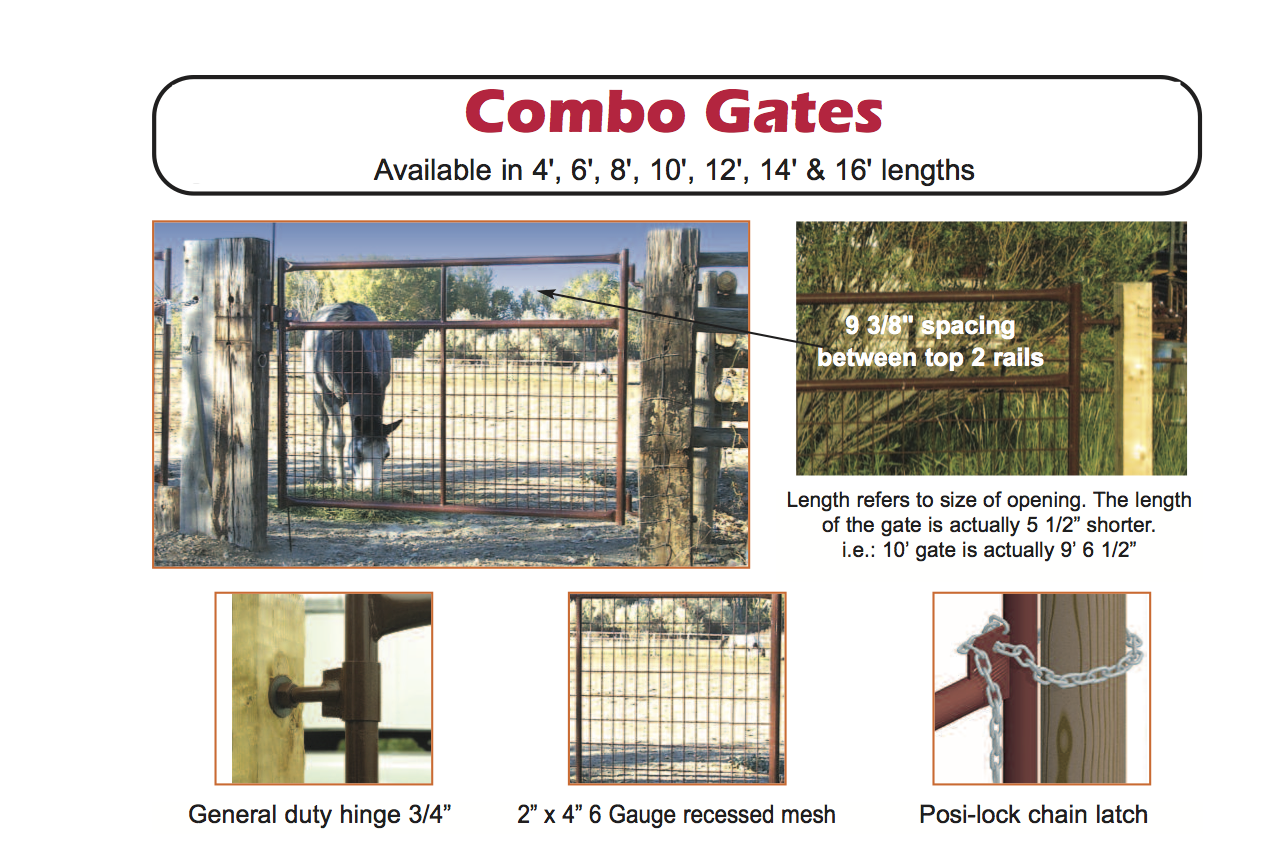

Let's talk about specific gates and will start with the combo gate. The Combo Gate is 48 inches with a 2 x 4" mesh in the bottom come and comes standard with the 11 1/4 inch long by 3/4" diameter threaded hinges. Why threaded hinges? It's to give you the ability to adjust the gate to fit the opening. I don't care how good you are at hanging your gate, once you set a post and hang a gate on it, that post is going to shift over time. If you have a fixed, gate latch, you lack the ability to adjust that gate and it won't fit that opening anymore. As the post settles over time, I can come back and adjust my gate to fit in the opening both horizontally and vertically.
We use a true quarter-inch latch plate that is welded on both sides. That sounds trivial but if you look at the competition. it's not. Many people use lighter material with tack welded typically on one side, not both. So as pressure is applied to the gate, the gate fails at the latch plate and it's not a balanced product like HiQual is.
The Combo Gates comes with a 34" x 3/16" chain latch that securely latches the gate with the heavy-duty quarter-inch latch plate.
Quality from top to bottom, the Combo Gate is built for years of trouble-free abuse!
