Discover precision and portability with our Portable Animal Scale. Ideal for ranchers and farmers, this scale supports up to 500 lbs with a narrow design for easy livestock weighing anywhere on the farm. It's also available as a 24" Wide Animal Scale.
Specifications
- Scale Platform Width: 14", overall width 22"
- Optional Size: Also available in a 24" wide platform for hogs
- Outside Dimensions: 60" L x 22" W x 39" H
- Basket Height: 39" (Overall height to top of weighing meter basket: 73")
- Wheel Kit: Includes wheels, handles, and all necessary fasteners for easy transport
- Gate Options: Choose side-opening or contact us for center-opening gate configurations
- Digital Display Options: Available with either an Electric Meter or an advanced Digital Readout
- Customization: This model can be customized with center-opening gates and an optional basket-top closure kit — contact us to add these features
Explore our full line of portable animal scales to find the perfect fit for your livestock weighing needs!
Portable Animal Scale with 500 lbs Capacity – 14" Narrow Platform Livestock Weighing
The Portable Animal Scale with a 500-pound capacity is a reliable, lightweight solution for accurate livestock weighing in any location. Designed specifically for ease of transport and on-the-go weighing, this narrow platform scale is perfect for weighing smaller animals like goats, sheep, hogs, or calves. Its compact size and integrated wheels allow for effortless portability between pens, barns, or fields, making it an ideal addition to any farm or ranch operation.
Built with rugged, weather-resistant materials, this scale is engineered to deliver long-lasting performance in demanding agricultural environments. The digital readout ensures precise weight measurements, helping you track animal growth, administer the correct feed, and monitor overall health. Whether you're working at the chute, in the barn, or out in the pasture, this scale gives you the mobility and accuracy you need to manage your livestock effectively.
This animal scale is pre-calibrated and ready to use right out of the box. With its easy-to-read LCD display, smooth ramp access, and low-profile platform, it makes weighing quick and stress-free for both animals and handlers. The scale also includes rechargeable battery operation for extended field use and comes with durable load cells protected inside the steel frame for added longevity.
Product Features:
- 500 lb capacity – ideal for goats, pigs, sheep, and small calves
- Narrow platform design – easy access for smaller animals
- Highly portable – includes wheels and a lightweight frame for transport
- Pre-calibrated digital scale – plug and weigh
- Weather-resistant steel construction – durable for outdoor use
- Low-profile platform with side rails – improves animal stability
- Rechargeable battery – long-lasting field operation
- Bright, easy-to-read LCD digital display
- Reliable load cells encased for protection and accuracy
- Perfect for use at chutes, pens, and mobile vet sites
This narrow animal scale from Barn World provides convenience, reliability, and rugged performance that supports efficient livestock management. Whether you’re weighing newborn calves, sheep, or hogs, this scale helps ensure animal welfare and operational accuracy every step of the way.
Portable Hog Scale Features:
There are many different choices available when building your scale and we've included three of the most popular options above as packages. These options include the addition of wheel kits to make them easily transportable to the type of indicator readout preferred.
Indicator Choices: Display or Meter
Choose your preferred style of displaying the weight belowThe C100 Digital Display (click here)
This versatile display has three functions that are accessed by pressing and holding the blue unit button for one (1) second:
- AAF (Animal Average Function): This is the default setting. AAF detects the presence of an animal on the scale and then collects weight data over five (5) seconds. The data is filtered and averaged, and the average weight is displayed. To re-weigh an animal while on the scale, press the red Power/Tare button while the previous average weight is shown on the display. After unloading the animal, press the red Power/Tare button to reset the display for the next animal.
- dIr (Direct Readout): This setting reads the direct weight of the display.
- SCr (Scaled Readout): This setting provides an instant readout for weighing with the scale.
Please note that the display requires (2) AAA batteries that are not included.

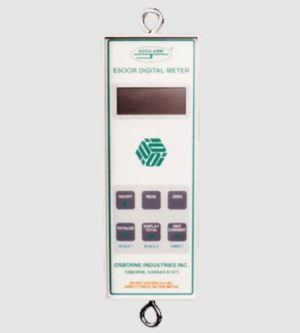

The High-Performance Digital Meter with an RS-232 port
The E500R comes with a standard RS232 port that lets you send weights electronically to your computer database or to other digital recording devices that accept the input from the RS232 cable connection.
Osborne will also offer engineering and programming services to help you set it up. You’ll get true plug-and-play convenience with the optional, economical ACCULINK™ Software Package. It even includes the cable you need to transfer weights directly from the indicator to your PC for spreadsheets, reports, and graphs. Measures to the 1/10th of a pound!
Other Options
-
Wheel Kit Option
The wheel kit option lets one scale work in several locations. Handles lower wheels and makes light work of moving these heavy-duty scales
-
Gate Options
Center-opening gates can be operated from either end of the scale, while the side-opening gates swing both left and right
Pictures of the Hog Feeder
| Scale Specifications | |
| Catalog Number | FS-PSW500D |
| Description | Wide portable scale with standard side panels, side-opening gates, digital meter, and wheel kit |
| Total Width | 28 in. (71 cm) |
| Platform Width | 20 in. (51 cm) |
| Total Length | 60 in. (153 cm) |
| Basket Height | 39 in. (99 cm) |
| Total Scale Height | 73 in. (186 cm) |
| Weight Capacity | 500 lbs. (227 kgs) |
| Digital Meter Specifications | |
| Catalog Number* | FS-00E500R |
| Description | Electronic digital meter with RS232 link |
| Weigh Capacity | 500 lbs. (227 kg) Call for other applications |
| Accuracy | + / - 1% |
| Features | Auto-zero function, quick freeze function, ACCU-LINK™ software for weight collection to PC (optional) |
The C100 Digital Display
Osborne Livestock Scales Provide Accurate, Stress-Free Animal Weighing
The Osborne ACCU-ARM Scales offer livestock producers a reliable and efficient solution for weighing animals such as pigs, sheep, and goats. Designed with animal comfort and handler convenience in mind, these livestock scales feature a precision lever system that reduces sway and bounce, making the process smoother and less stressful for both livestock and operators. With a completely cable-free design, setup and use are simple and clutter-free, ideal for any agricultural environment.
The innovative modular weigh-arm system can be mounted in the center or moved to the side, providing full access to animals for treatments, vaccinations, or ultrasound examinations. Built for long-lasting durability and dependable accuracy, these scales are a practical tool for managing animal health and productivity. The modular design also allows you to customize the scale to fit specific operational needs.
Suitable for both commercial livestock operations and testing facilities, Osborne pig scales are commonly used to weigh pigs, goats, and sheep. They are also trusted in settings such as livestock shows, county fairs, and youth agricultural programs, making them a versatile option for a variety of livestock management needs.
Whether you’re raising animals for production or preparing show pigs and goats for competitions, Osborne’s ACCU-ARM Scales provide the dependable performance and flexibility you need to maintain accurate weight records and support animal well-being.
Portable Animal Scale for Pigs and Small Livestock
Weighing pigs and small livestock regularly is an important part of managing animal health, growth, and overall farm efficiency. Whether you’re tracking weight gain, dosing medication accurately, or checking market readiness, having a reliable livestock scale makes the process quicker and easier.
This Portable Animal Scale is designed specifically for pigs, goats, sheep, and other small livestock. It provides consistent, accurate readings while being easy to move and operate.
Easy to Move Livestock Scale with Built-in Wheels
One of the best features of this scale is the built-in wheels. It’s easy to roll across the barn or pasture and position wherever it’s needed. This reduces stress on the animals and saves time by bringing the scale to them rather than the other way around. It’s especially handy for small operations or for weighing in multiple locations.
Benefits of the Portable Animal Scale
- Durable construction – Built to withstand daily use around animals and equipment.
- Accurate readings – Delivers consistent weight measurements, even with animals that move.
- Multi-animal use – Ideal for weighing pigs, goats, sheep, and other small livestock.
- Battery operated – Use the scale anywhere without needing a nearby outlet.
- Low maintenance – Simple to clean and maintain with minimal upkeep required.
Farmer Review
"I raise a couple of dozen pigs every year, and this scale has made things a lot easier. I didn’t want anything fancy, just something that works, and this one does. I can roll it out with one hand and have a pig weighed in a few minutes. The digital readout is easy to see and it’s never been off. It's easy to use and I figured it out right away. It’s solid, it’s simple, and it saves me time. That’s all I need."
If you're looking for a simple, dependable scale that works well for small livestock, this portable animal scale offers the convenience and reliability needed on the farm.
