Be sure to include your end plate when ordering
Each manifold station requires an Organizer with an End Plate for each zone. (E.g. 8 zones require 8 PEX-Pals and 1 End Plate). Each PEX-Pal module supports the supply and return pipe for one zone.
PEX Organizer

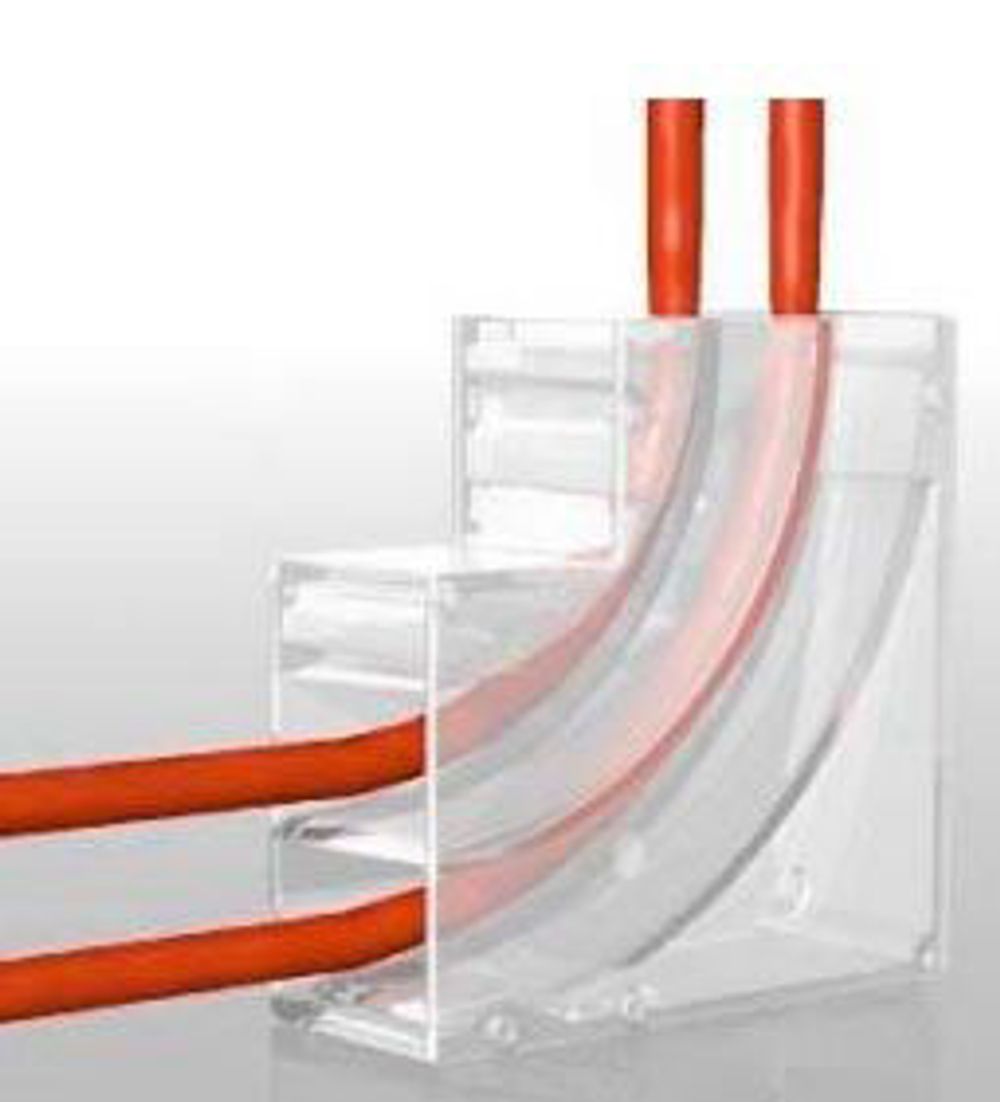

The ‘PEX Pal’ is a tubing collector and organizer for radiant heating in-floor installations. The modular two-channel design positions the supply and return pipes at the correct spacing required for connection to the manifolds.

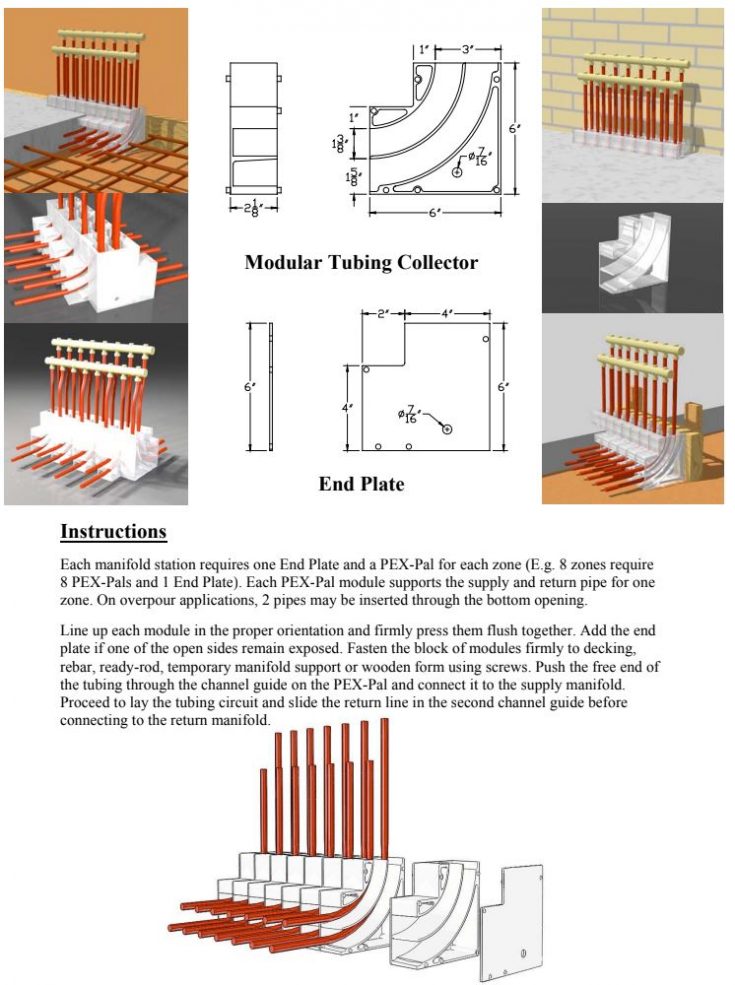

Fasten the block of modules firmly to decking, rebar, ready-rod, temporary manifold support, or wooden form using screws. Push the free end of the tubing through the channel guide on the PEX-Pal and connect it to the supply manifold. Proceed to lay the tubing circuit and slide the return line in the second channel guide before connecting to the return manifold.
FEATURES and BENEFITS
- Fast, organized, and cost-effective
- Mounts to decking, rebar, ready-rod, temporary manifold support, or wooden forms
- A completely enclosed design protects the tubing at the floor surface
- Each channel keeps the supply and return pipes separately and directs them to the correct manifold
- Modular design allows the installer to add as many zones as required
- The reversibility of each module allows individual zones to be piped from opposite directions
- Each module is easily pressed to fit together
- Maintains a larger bend radius than the manufacturer's recommended minimum for 3/4” and smaller PEX tubing
- Constructed of high-impact strength plastic
