These large concrete footings will require that a mechanical means of unloading be available upon delivery. Each one of the forms weighs 2,000 pounds.

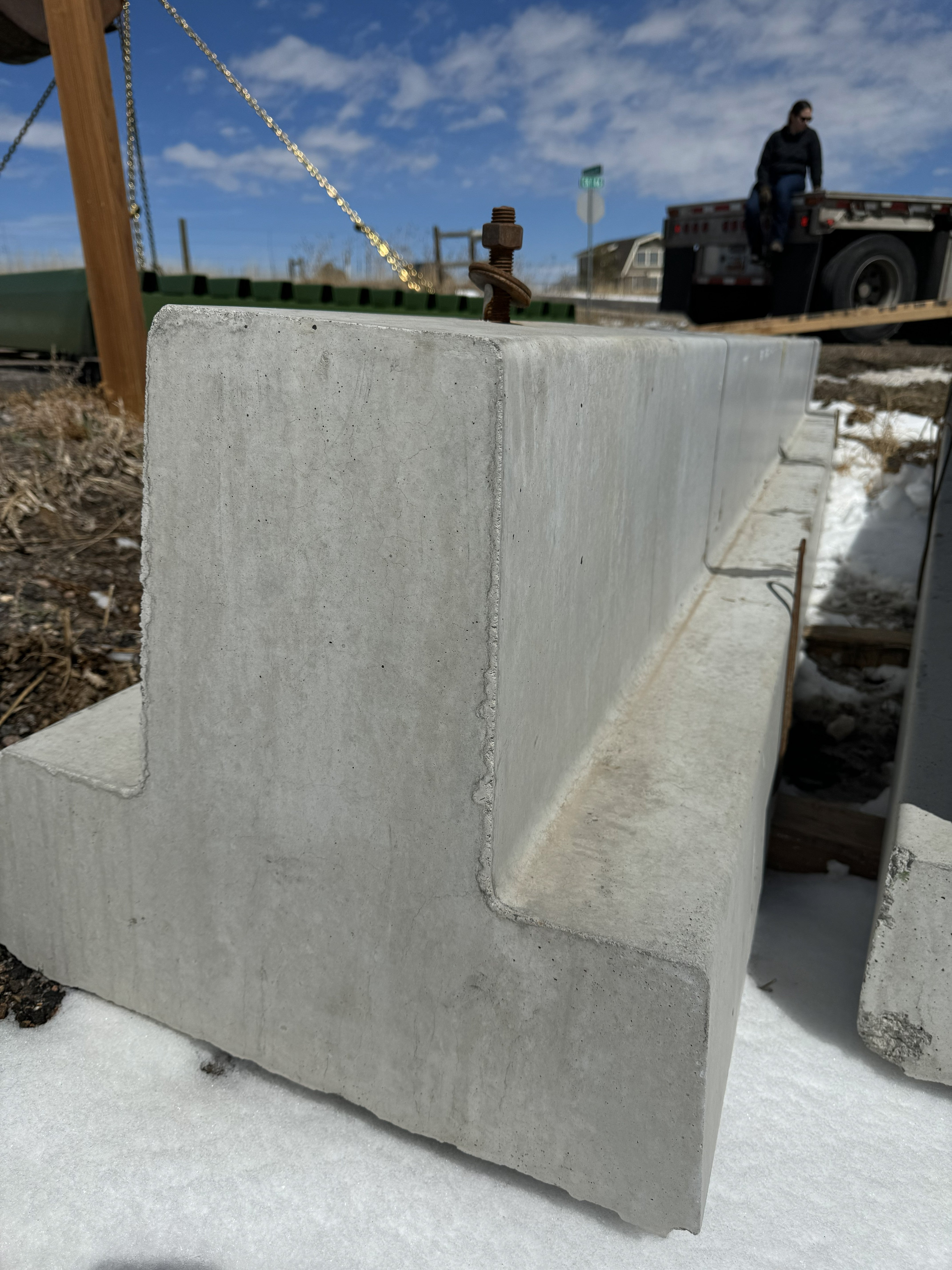

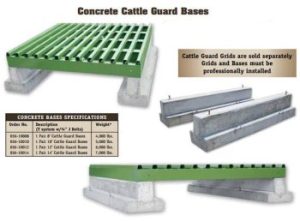

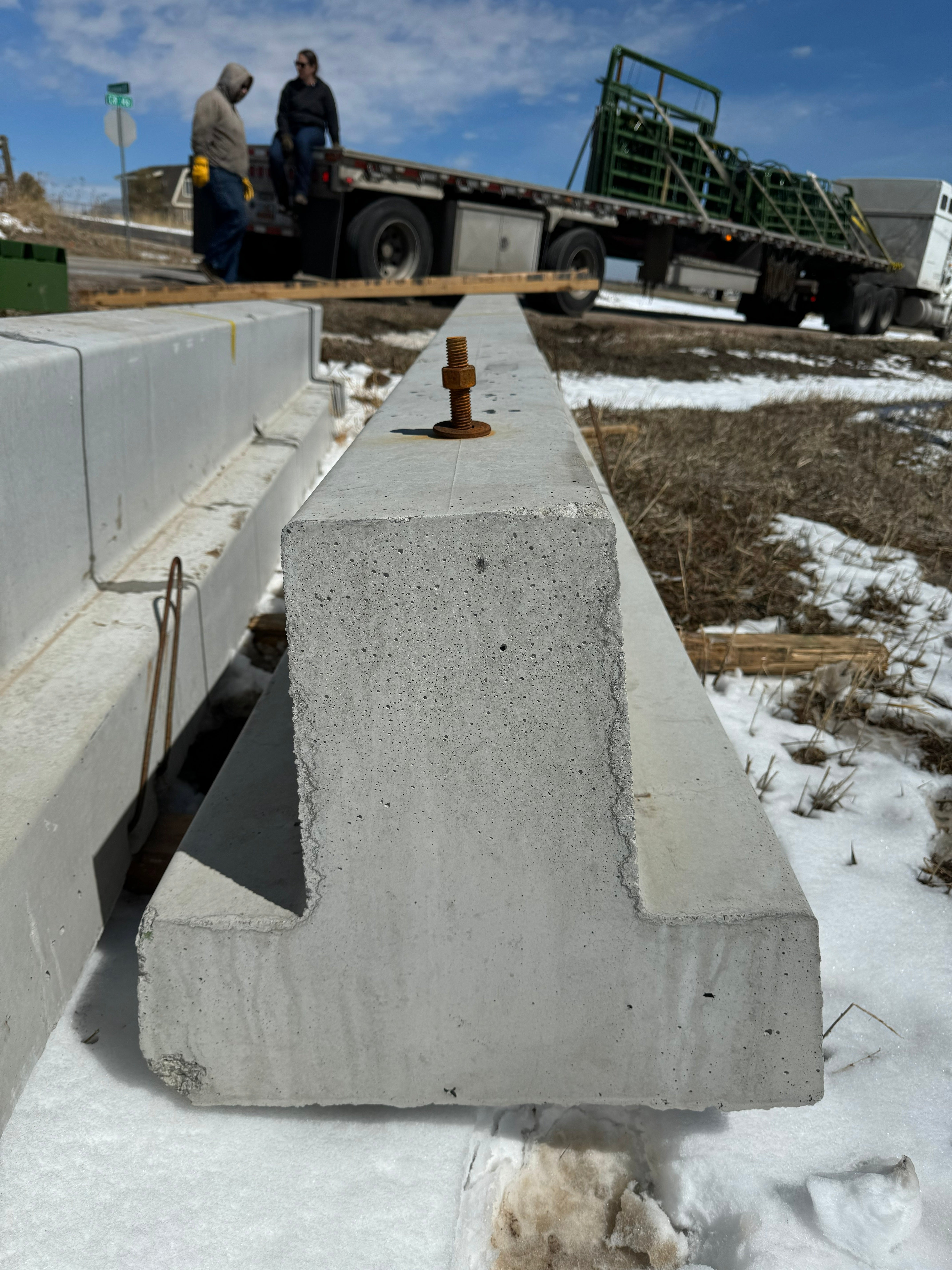

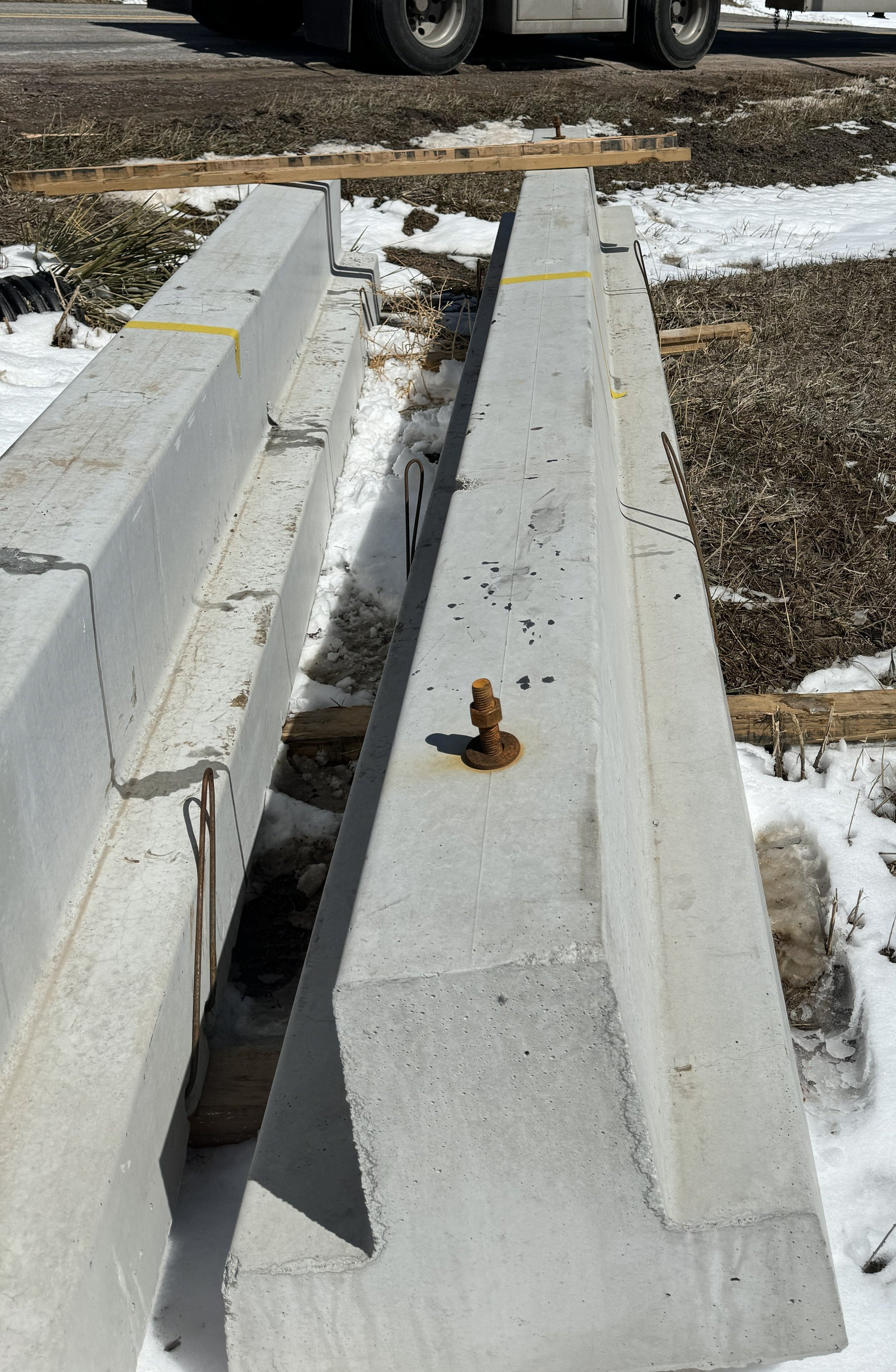

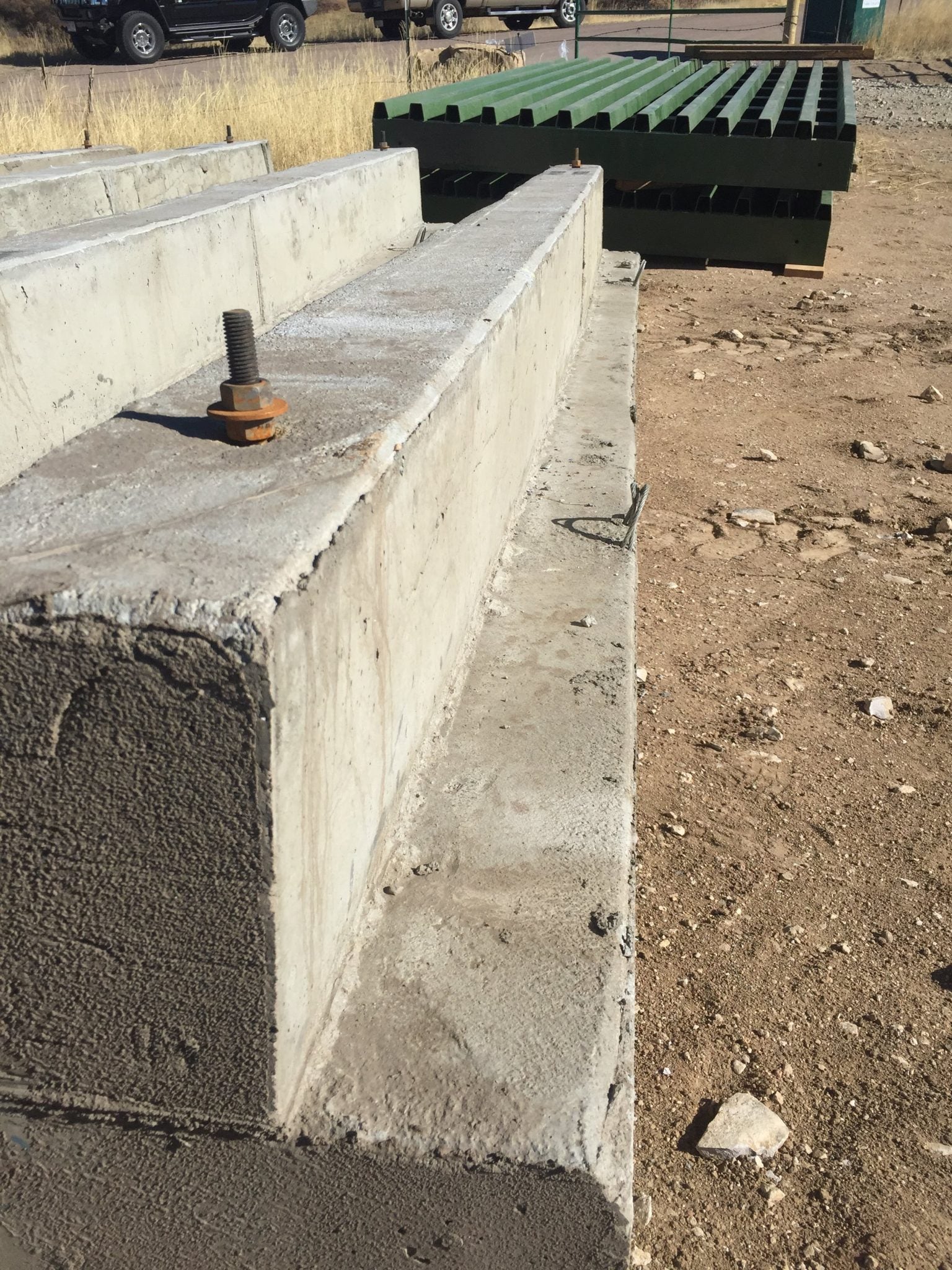

Precast Concrete Foundations for Cattle Guards
Our precast concrete foundations are engineered specifically for use with flat top rail cattle grids , providing a sturdy and reliable base that installs quickly and easily. These ready-to-set footers eliminate the hassle and expense of on-site cement pouring, delivering a hassle-free solution designed to perfectly anchor your steel cattle guard.
Cattle Guard Foundation Features & Benefits
- Precision-made to fit 8' and 14' flat top rail cattle guards securely
- Heavy-duty precast concrete with embedded 3/4" J-bolts for effortless grid attachment
- 8-foot foundations weigh approximately 2,000 lbs; 14-foot foundations weigh about 3,500 lbs
- Delivered ready-to-install — simply dig a trench, set the foundation, and bolt down your cattle guard
- Requires mechanical assistance for unloading at delivery
Save time and labor with our precast concrete footings shipped directly with your cattle guard. No need to mix or pour concrete on-site—just set the foundation and secure your grid for a durable, long-lasting installation.
Important: Always consult a local contractor familiar with soil conditions, drainage, and frost lines to ensure your cattle guard foundation is installed properly for maximum durability and performance.

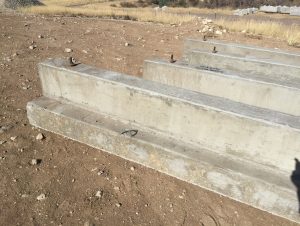

Check out the diagrams below to see how easy it is to install your new concrete foundation. With minimal prep work, you can have a safe and sturdy cattle crossing foundation in no time!

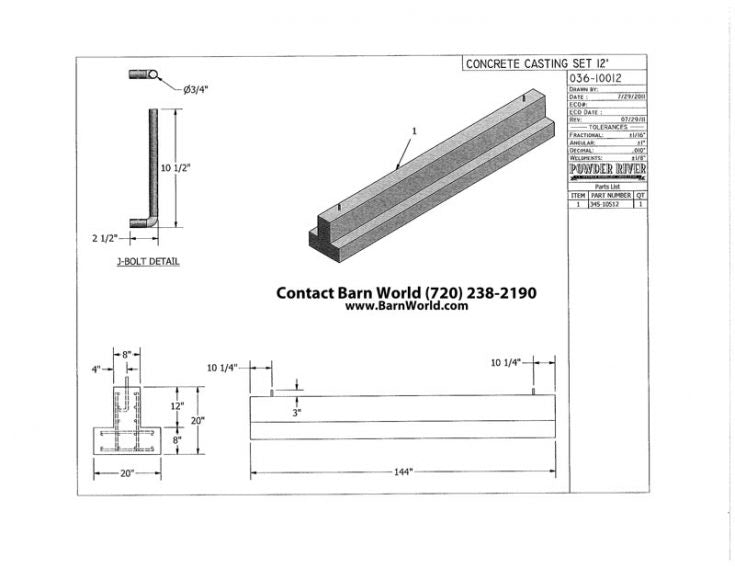

Foundation Spec Drawings
Generic Cattle Guard Foundation Drawing
CLICK A LINK ABOVE FOR A SPECIFIC LENGTH

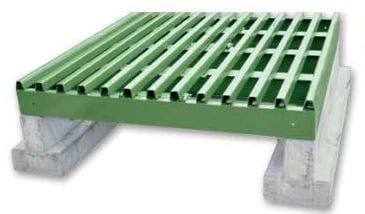

Cattle Guard on Foundations
