U54 Rated Cattle Guard Description
Highway-use cattle guards require an HS-20 or 16 tons per axle rating. These overbuilt U-54-rated guards are engineered for 25 tons per axle, much more than what's required for public roadways!

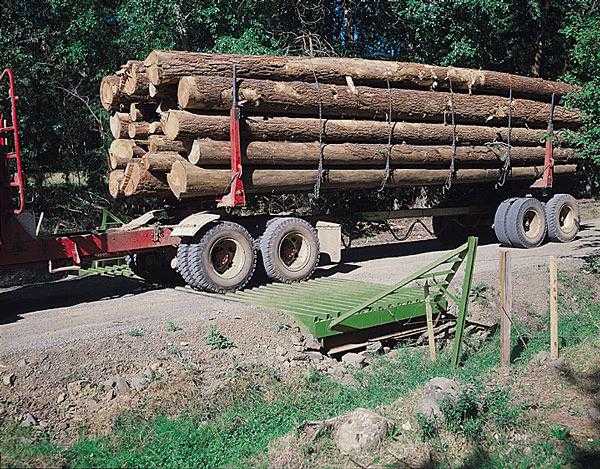

They're not only an effective livestock barrier to keep your animals from crossing, but the tremendous carrying capacity is designed for equipment and operations far above what is required by the DOT. Typically, we see these heavy-duty cattle grids used in oil fields and logging operations where the load is much more than is allowed on public highways.
They are available with precast footings, wings, and clean-out sections, and they may be bolted together for wider roads and crossings.
See all of our flat top rail cattle crossings here.The Dual Deterrence of Cattle Guards: A Physical and Visual Barrier
At the heart of the cattle guard's effectiveness lies its dual nature – a combination of physical and visual deterrents that effectively prevent cattle from crossing the installed livestock barrier. The physical deterrent is most evident at the top of the cattle guard, where the design challenges hoofed animals in a unique way. The small surface area forces the flat hoof to balance on its edge, creating a challenging and uncomfortable balancing act for the curious bovine.
As depicted in the image below, optical depth perception plays a crucial role in further deterring cattle. The design allows them to see through to the bottom of the vaulted area, inducing an illusion of danger. This visual confusion acts as a powerful deterrent, reinforcing the physical challenge presented by the cattle guard's structure.
The marriage of these physical and visual elements transforms the cattle guard into an effective barrier, discouraging cattle from attempting to cross. It's not merely an obstacle but a strategic deterrent that leverages both the discomfort of physical imbalance and the psychological impact of optical depth perception, creating a robust defense against livestock encroachment.
Installed Cattle Guard
Footing for Cattle Guards
These great precast footings can be delivered with the grids and allow for a direct connection without the need for pouring your own foundation. They include a J-bolt that matches the grid already set in the cement. Simply lower the guard onto the bolts, secure, and you have a solid crossing. See the matching 12' concrete cattle guard foundation here.
Cattle Guard in Use
Once installed, vehicles may effortlessly cross without worrying about opening or closing a gate - extremely convenient. If you have to provide access through your fencing and pastures to people you're not familiar with, this is the way to go. No more forgetful open gates for your herd to trot through!
Cattle Guard Wings complete the connection
Wings for Cattle Crossings
Below is a close-up picture of the wings, which shows how they prevent animals from stepping around the connection between the fence line and the crossing itself. These wings are powder-coated and are made up of the steel, triangular section known as the 'wing', and the vertical post that holds the wing in place and allows for the termination of the fence line.
