Specifications and Details
These H15-rated cattle guards are rated with a load-carrying capacity of 12 tons per axle and are twelve feet long, or the distance across the roadway. They are built with the flat top rail that provides a smoother ride for vehicles, especially when traveling at higher speeds than the ride on the round top rail cattle guards. They are available with precast concrete footings and optional wings to tie the fence line to the livestock barrier itself.
Cattle Guard Photos
Truck on a cattle grid
Auto cattle guard crossing
Close-up of cattle guard rails and installation

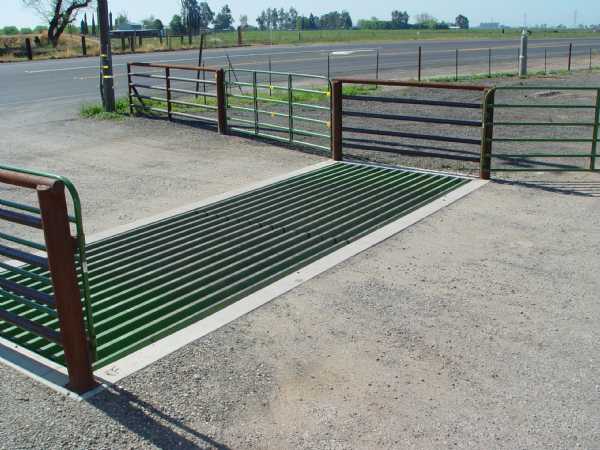

Complete Cattle Guard Installation
Pre-cast Concrete Foundations for Cattle Guard Installations
Cattle guard foundation spec sheet
Cattle Guards Wing and Post Picture
The cattle guard wing and end posts combination ensures that your livestock won't step around the connection between your fence line and the end of the grid. The wings attach directly to the grid and are held vertically by the post, so you may connect your fence line without interruption.
Why Choose the H-15 Rating over H-20?
You may choose an H15-rated cattle guard over an HS20-rated cattle guard primarily due to differences in load-bearing requirements, cost, and the intended use of the cattle guard. Here are the main reasons for this choice:
1. Lighter Load Requirement
H15-rated cattle guards are designed to handle lighter loads, typically up to 12 tons per axle. This makes them suitable for lighter traffic but strong enough to carry the typical 10-ton per axle load of a fully loaded semi-truck. If a location does not experience frequent heavy trucks, such as cement and oil field equipment, an H15 guard is usually sufficient. Be sure to check the weight-carrying requirements for your site to make sure you are installing a cattle guard with the appropriate load rating.
2. Cost Efficiency
HS20-rated cattle guards, which support heavier loads of 16 tons per axle, are typically more expensive due to their heavier-duty materials and construction. If heavy-duty performance is not necessary, choosing the H15 cattle guard offers a more cost-effective option.
3. Appropriate for Agricultural Use
On farms or ranches where only farm vehicles are used, such as pickup trucks, tractors, and trailers, an H15-rated cattle guard can be perfectly adequate. It’s often used in pasture entryways, private ranch roads, or areas where heavy commercial trucks don't regularly pass through.
In summary, an H15 cattle guard might be preferred when the primary traffic involves lighter vehicles, and there’s no need for the higher strength of 16 tons per axle—and added cost—of an HS20 guard.
