See all of the Feed Bin Wall Kits!
Feed Bin Wall Sheet Specifications
| Bin | Wall | Overall | Hole | # Holes | |
| Diameter | Section | Length | Spacing | Top | Bottom |
| 6' | 6 | 52" | 3-1/8" | 13 | 4 |
| 7' (click here) | 6 | 85-3/4” | 3-1/8” | 15 | 5 |
| 9' (click here) | 9 | 91-1/4” | 3-1/8” | 13 | 3 |
| 12' (click here) | 12 | 127” | 3-1/8” | 13 | 3 |
Description
Repairing your feed bin hopper section is made simple with the grain bin hopper wall repair kit. The kit is designed to replace hopper walls on your worn or rusted bulk feed bin and has everything you need to store your feed safely. There are six hopper wall sections in the kit.
PAX Bins: Please note that this kit fits the 6' diameter bin, not the older 1954-1985 PAX bins which were 6' 6" in diameter with (8) wall sections. This kit has (6) wall sections, not (8). This will not fit the older 6' 6" diameter PAX bin, only the 6' diameter bin.
Specifications
- (6) hopper wall sections for the six-foot diameter bin
- sheets are 52" long
- Bolt hole spacing is 3 1/8” on top and bottom
- A total of 13 holes on top and 4 on the bottom
- Includes sealant and hardware - see list below
- The walls are 20-gauge
- Will fit Pax and Brock Bins as well
Contents
- (6) Bin Walls
- 80 – 5/16 x 1” Hex Head Bin Bolts
- 120 – 5/16 x ¾” Truss Head Bin Bolt
- 200 – 5/16’ Hex Flange Nut
- 2 – 50’ Roll Caulking

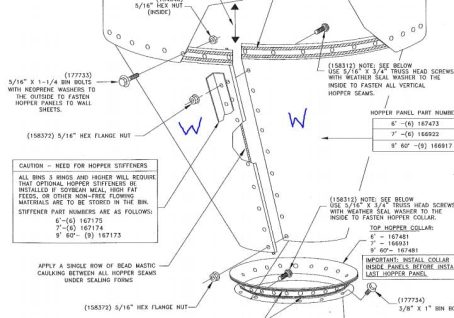

Wall Section Diagram
