Gate Features
- Notched horizontal and center vertical braces
- 59" tall, 6 bars, square tops
- Brown powder coating
- Patented t-slot latch and 48" chain
- 16-gauge, high-tensile, 58,000 PSI structural steel tubing
- Welded-on collar hinges are included at no additional cost.
Tall Livestock Gate – Heavy Duty Ranch Gate for Large Animals
Protect and manage your livestock with this heavy-duty tall livestock gate, designed for rodeo arenas, pens, and high-traffic confinement areas. Built with rugged 16-gauge, 2" diameter steel tubing, this gate offers exceptional strength and durability for handling bison, elk, bulls, and other large animals.
Featuring a powder-coated brown finish, patented t-slot latch, and extra-long 48" locking chain, this gate is built to withstand the toughest ranch environments while keeping your animals secure. Welded-on collar hinges come standard at no extra cost for easy installation and reliable operation.
Key Features
- Ideal for rodeo arenas, pens, and heavy confinement areas
- Designed for large animals like bison, elk, and bulls
- Constructed from 16-gauge, high-tensile 58,000 PSI steel tubing
- 59" tall with 6 strong horizontal rails and square tops
- Brown powder coating resists rust and weather damage
- Patented t-slot latch and 48" locking chain for security
- Welded-on collar hinges included for easy mounting
Gate Weights by Length
| Length | Weight |
|---|---|
| 8' | 107 lbs |
| 10' | 128 lbs |
| 12' | 148 lbs |
| 14' | 169 lbs |
| 16' | 193 lbs |
Note: Actual gate lengths are approximately 5.25" shorter than stated to accommodate hinges.
Heavy Duty Livestock Gate Video
Hi-Qual Heavy Duty Gate Lineup
The Hi-Qual gate collection offers premium strength gates to meet your toughest ranch demands.
The Cattleman's Gate
The Cattleman's Gate is crafted from the same robust 2" diameter, 16 gauge steel tubing as our heavy-duty gates, standing 52" tall with six rails for improved livestock containment. The bottom rails are spaced closer together to safely secure calves and smaller animals. Equipped with high-tensile 1017 steel and versatile hinges, this gate ensures long-lasting performance and security.

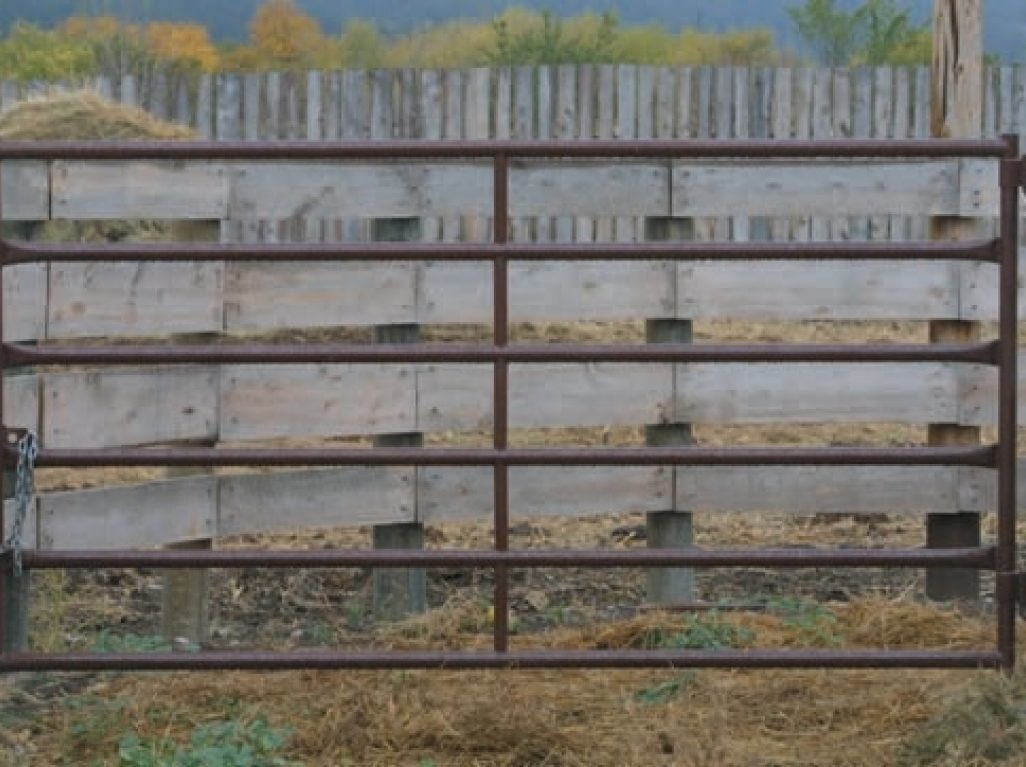

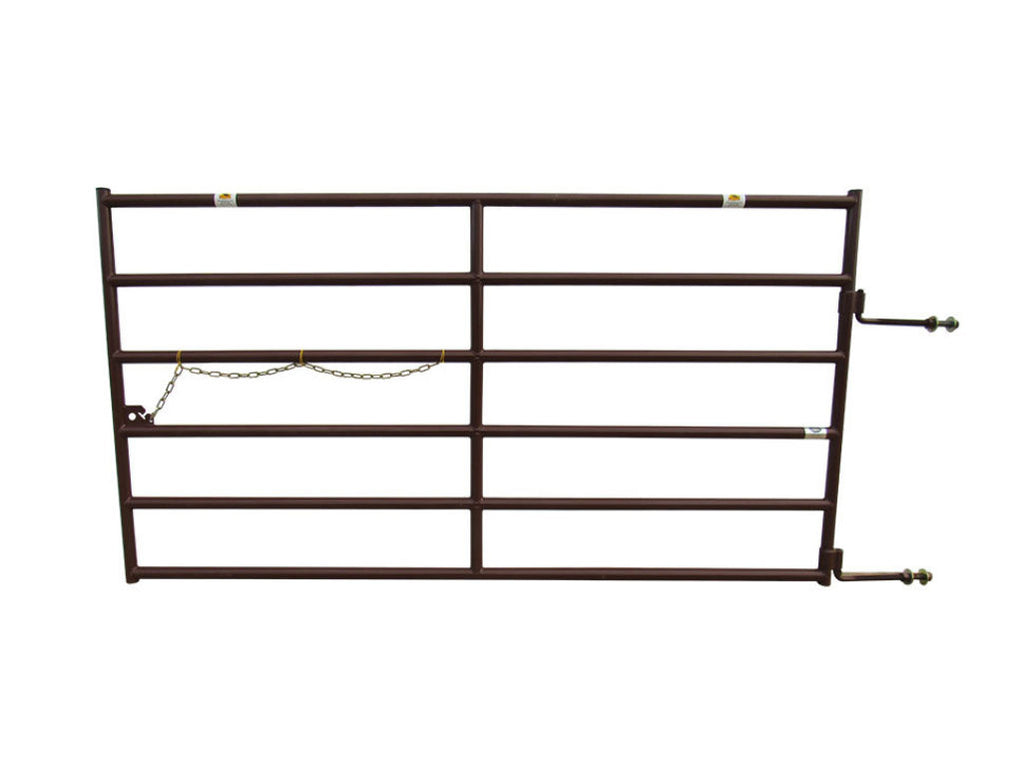

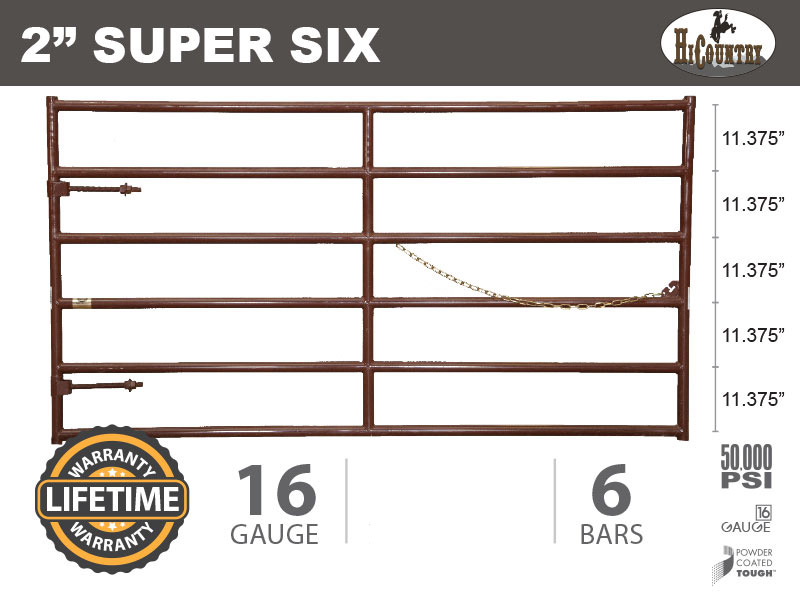

The Super Six Gate
The Super Six Gate is built for the most demanding environments like feedlots, dairy farms, and buffalo ranches. Made from 2" 1017 high tensile steel with six heavy-duty rails, this 59" tall gate delivers exceptional strength and durability. It features adjustable L-bolt hinges with quick-release roll pins and a locking chain latch system designed for secure and convenient operation.
Why Choose Our Heavy Duty Gates?
- Constructed for rough use with large, rambunctious livestock
- Heavy-duty 16-gauge steel tubing rated at 58,000 PSI tensile strength
- Available in multiple lengths from 8' to 16' with heavy-duty hangers
- Secure locking system to prevent livestock from tampering
- Rust-resistant brown powder coating for long life outdoors
Additional Images
Explore our full selection of high-quality livestock gates at Barn World today.
Contact us at Sales@BarnWorld.com or call for a personalized shipping quote right to your door.
