Tall Heavy-Duty Livestock Gates – 64" When Hung
Built for strength, safety, and long-term durability, these Tall Heavy-Duty Livestock Gates are the toughest gates available for ranches, farms, and rodeo facilities. Standing 64 inches tall when hung, they’re ideal for handling large, strong livestock and for use in high-pressure crowding situations where standard gates may not hold up. Whether you’re managing cattle, horses, or other large animals, these gates are designed to provide years of reliable service in even the harshest working environments.
Specifications
| Overall Height (When Hung) | 64 inches |
| Gate Height (Unhung) | 52 inches |
| Frame Material | 13-gauge steel, 1.66" OD |
| Horizontal Rails | 14-gauge pentagonal steel |
| Gate Latch Type | Double Piston Lever Latch (chain latch optional) |
| Hinge Type | 180° swing, mounts to wood or steel posts |
| Application | Ranch corrals, rodeo arenas, and crowding areas |
| Warranty | 5-year limited warranty |
Built Extra Tough for Demanding Conditions
Each gate is constructed with a 13-gauge, 1.66-inch OD steel frame and reinforced with 14-gauge pentagonal horizontal rails, providing up to 66% more strength than mild steel tube gates. The added rigidity makes them ideal for crowding areas, alleys, and working pens where livestock pressure is high. Formed arch vertical stays on both sides add additional support and keep the gate aligned and stable over time.
Ranch-Ready Design and Versatility
Designed for ease of use and longevity, these livestock gates feature 180° swing hinges made from ¼" x 3" steel, allowing them to be mounted to wood or welded to steel posts. They can be opened easily from the ground or while on horseback—perfect for rodeo arenas and large ranch operations. Each gate comes with a Signature Double Piston Lever Latch for secure closure, with an optional chain latch available for added flexibility.
Durability You Can Depend On
Every tall gate is built to withstand years of heavy use and comes backed by a 5-year limited warranty. The combination of high-tensile steel, precision engineering, and rugged construction ensures these gates perform in any livestock management setting, from feedlots to working corrals.
Whether you’re building a new corral system or upgrading existing fencing, Barn World’s Tall Heavy-Duty Livestock Gates deliver unmatched strength, safety, and functionality for your operation. Designed to withstand pressure from the largest herds, these gates offer superior control and reliability where it matters most.

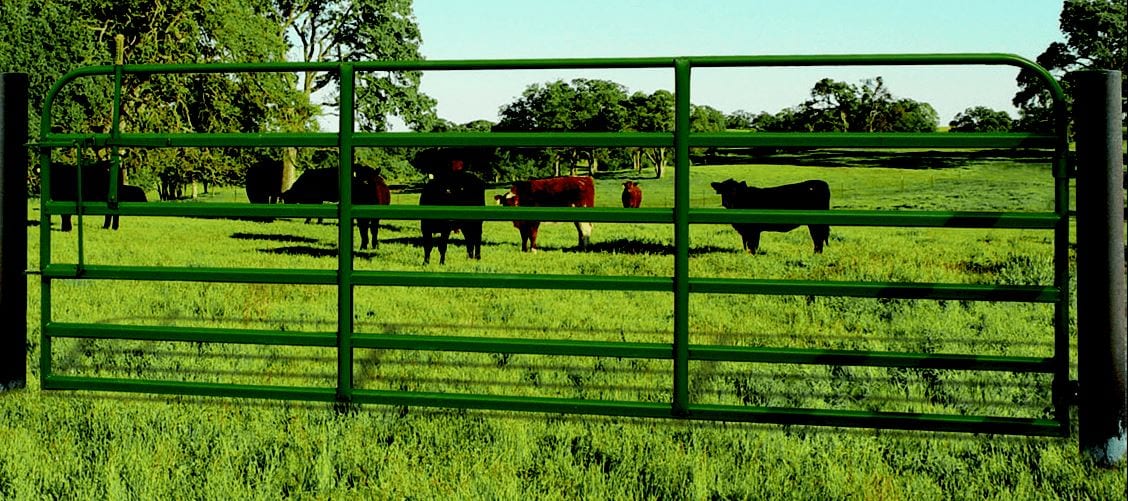

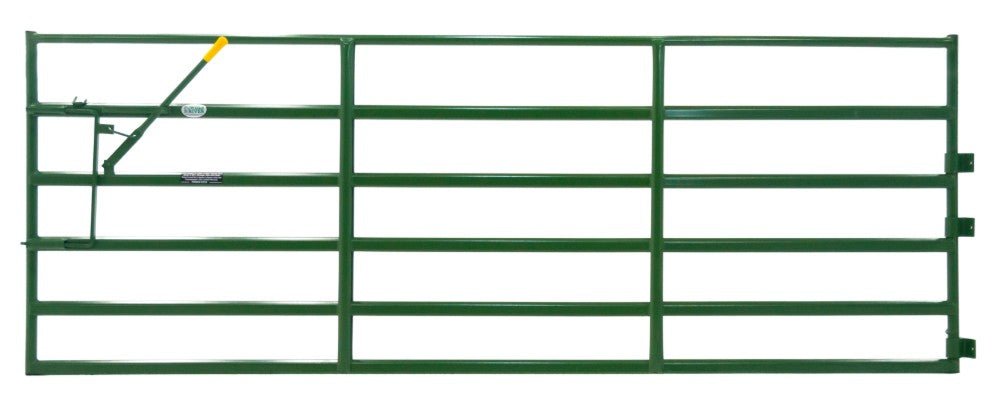

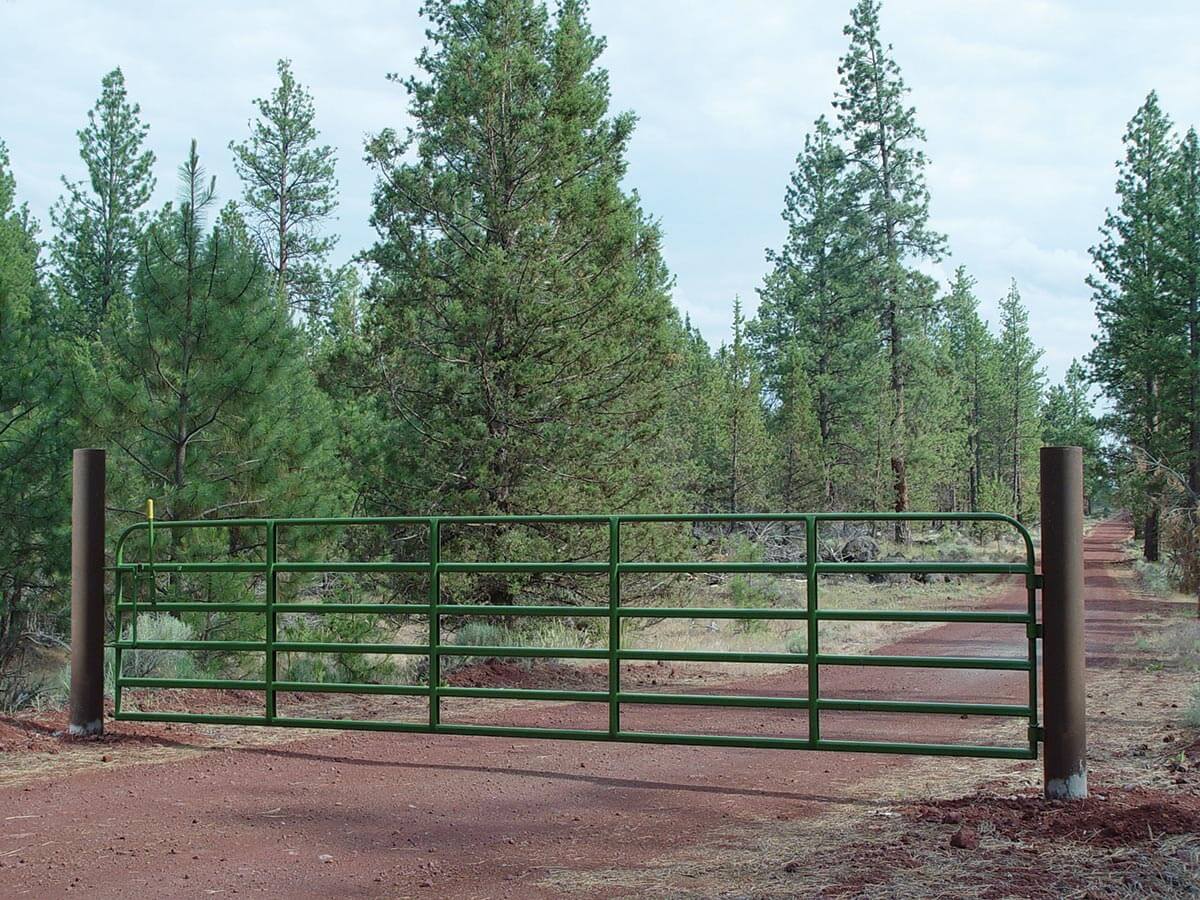

Pictures of the gate with the lever latch
