Gate Features
- All tube joints are notched, fitted, and welded all the way around
- Vertical Tubes are 2" x 16 gauge, capped with rubber plugs!
- Rails are built in 2" x 16-gauge steel tubes.
- Dimensions - 48" tall, square top with 5 bars of extra support
- T-slot chain latching system - includes 48" chain
- Powder-coated in brown
- All tubing is 16-gauge steel, 58,000 PSI.
- Hinges are welded directly to the frame
- Hinges include an extra-long rod that's 1" x 14-3/4"
- Click here for more of our square top gates

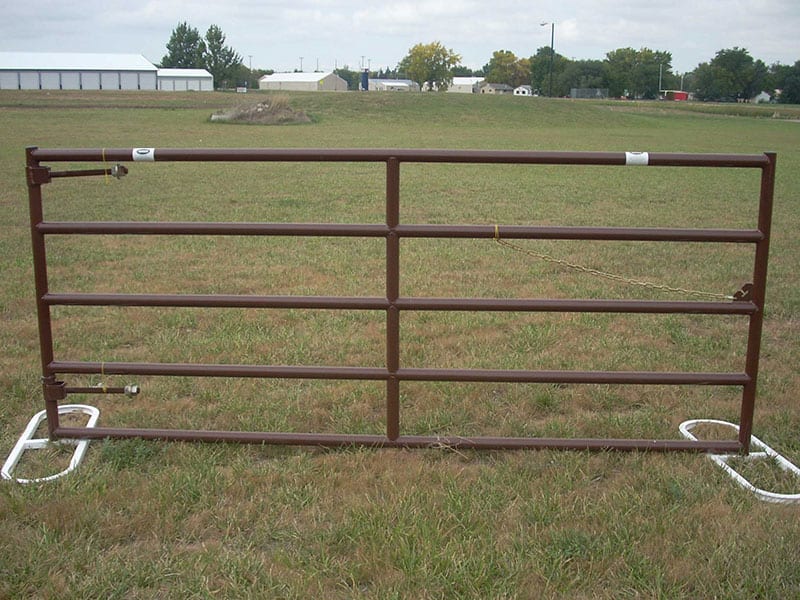

Heavy Duty Metal Livestock Gate – Strength You Can Rely On
The Heavy Duty Metal Livestock Gate is designed for demanding farm and ranch environments where durability, security, and long-term performance are essential. Built to handle frequent use and livestock pressure, this gate is ideal for high-traffic areas such as corrals, pens, pasture openings, and rural driveways. Its rugged steel construction delivers dependable access control while helping keep livestock safely contained.
With nine available length options, this heavy duty gate allows you to match the right size to each opening on your property while maintaining a consistent, professional fencing system. A durable powder coat finish and reinforced construction help resist rust, wear, and sagging, making this gate a practical investment for working operations that require strength day after day.
| Gate Length | Weight |
|---|---|
| 4 ft | 34 lbs |
| 6 ft | 47 lbs |
| 8 ft | 65 lbs |
| 10 ft | 78 lbs |
| 12 ft | 92 lbs |
| 14 ft | 110 lbs |
| 16 ft | 124 lbs |
| 18 ft | 143 lbs |
| 20 ft | 155 lbs |
Key Features
- Heavy duty livestock gate built for daily farm and ranch use
- Available in nine lengths to fit a wide range of fence openings
- Strong steel construction designed to withstand livestock pressure
- Reinforced design helps prevent sagging over time
- Powder coat finish provides long-lasting protection against rust and weather
- Easy to operate while maintaining secure containment
- Well-suited for high-traffic and high-stress areas
- Backed by a one-year manufacturer warranty
Popular Uses
This heavy-duty metal gate is ideal for corrals, feedlots, pasture entrances, equipment lanes, and rural driveways. Its durable construction and multiple size options make it a dependable choice for ranchers, farmers, and property owners who need strong, reliable livestock control in demanding environments.
Features of the heavy-duty farm gate
- Livestock safety is promoted with the square corners
- Strong 16-gauge rails make it perfect for use in moderate confinement pens
- Extra-long 48" chain with a locking latch creates a secure containment area
- The vertical notching creates incredibly strong connections
- Build for cattle confinement use on driveways, pastures, really any access area in a fence-line

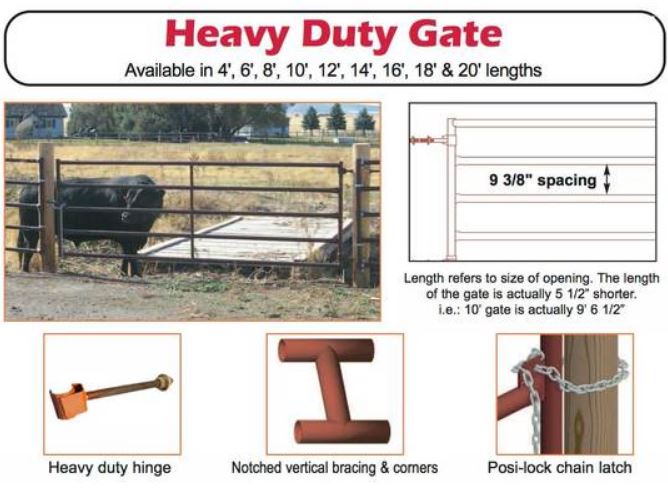

Farm Gate Dimensions
Heavy Duty Gate Video

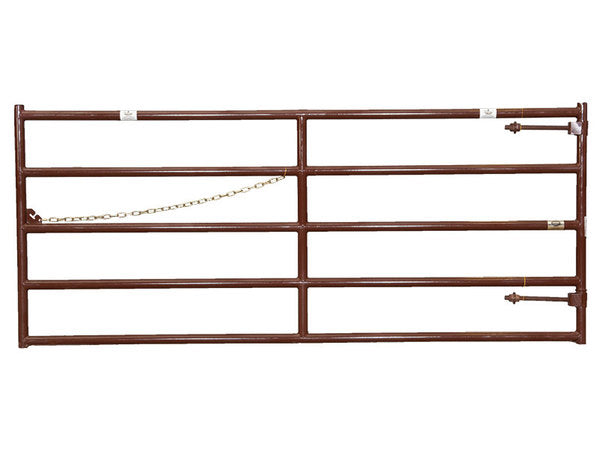

Heavy Duty Gate Construction
Vertical Post Rubber Caps
Rubber Gate Cap Installed
The posi-lock chain latch has a hole to help prevent the chain from becoming unlocked if animals play with it.
Gate Hinge is a heavy-duty, 1" rod that's 14-1/4" long with threads for each installation and adjusting
Gate Video Review:
It comes with 1" x 14 1/4 inch threaded rod hinges. It also includes a 48-inch by quarter-inch, heavy-duty chain, making it balanced for its application. The heavy-duty gate is a five-rail, 48-inch gate overall and has even spacing between horizontal rails. Something else I haven't mentioned yet is the rubber caps that we use on all our gates and panels for safety. We don't want any sharp edges here, so we finish everything off with a nice rubber cap. Again, the heavy-duty gate, as the name implies, is for heavy-duty applications of cattle and livestock management.
