SHOP ALL OF OUR SQUARE TOP GATES
Livestock Gate features for general farm and ranch duty
- Posts are made with 14-gauge, round steel capped with a plastic plug on each post
- Rails are made with 16-gauge round, 1-1/2" steel with 9-3/4" spacing on 11-1/8" centers
- Center support is notched and welded for a strong and solid fit
- The chain is 32" long and made with 3/16" links to make quick work of securing the gate
- Paint is based on powder coat for extreme durability and long-lasting protection
- Steel is high tensile, 58,000 PSI
- Warranty is one year through the manufacturer
General Duty Metal Livestock Gate for Farm & Ranch Use
The General Duty Metal Livestock Gate is built to deliver reliable performance in everyday farm and ranch environments. Designed for strength, longevity, and ease of use, this gate provides secure access control for livestock areas, pastures, corrals, and rural driveways. Its clean, practical design makes it a dependable choice for managing cattle movement while maintaining safe, organized fencing systems.
Constructed from high-tensile steel and finished with a durable powder coat, this gate is engineered to withstand repeated use and outdoor exposure. Available in nine different lengths, it allows you to select the ideal size for each opening on your property without sacrificing consistency or performance. From narrow pen entrances to wide equipment access points, this general-duty gate offers the flexibility and strength needed for working agricultural operations.
| Gate Length | Approx. Weight |
|---|---|
| 4 ft | 33 lbs |
| 6 ft | 45 lbs |
| 8 ft | 55 lbs |
| 10 ft | 67 lbs |
| 12 ft | 78 lbs |
| 14 ft | 90 lbs |
| 16 ft | 98 lbs |
| 18 ft | 110 lbs |
| 20 ft | 114 lbs |
Key Features
- Livestock gate engineered for general farm and ranch duty
- Available in nine lengths to accommodate a wide range of fence openings
- Posts constructed from 14-gauge round steel and capped with plastic plugs for added durability
- Rails made from 16 gauge, 1-1/2" round steel with 9-3/4" spacing on 11-1/8" centers
- Notched and welded center support provides a strong, solid fit that resists sagging
- Includes a 32" chain made with 3/16" links for fast, secure gate closure
- Powder-coated paint offers extreme durability and long-lasting corrosion protection
- High tensile steel rated at 58,000 PSI for dependable strength in demanding environments
- Backed by a one-year manufacturer's warranty
Best Uses
This general-duty metal gate is ideal for cattle pastures, corrals, pens, equipment lanes, and rural driveways. Multiple size options make it easy to maintain a consistent gate style across your property while selecting the correct length for each location. It is a practical, durable solution for ranchers and property owners who need dependable livestock control without stepping up to heavy industrial gates.
Farm Gate Video Description

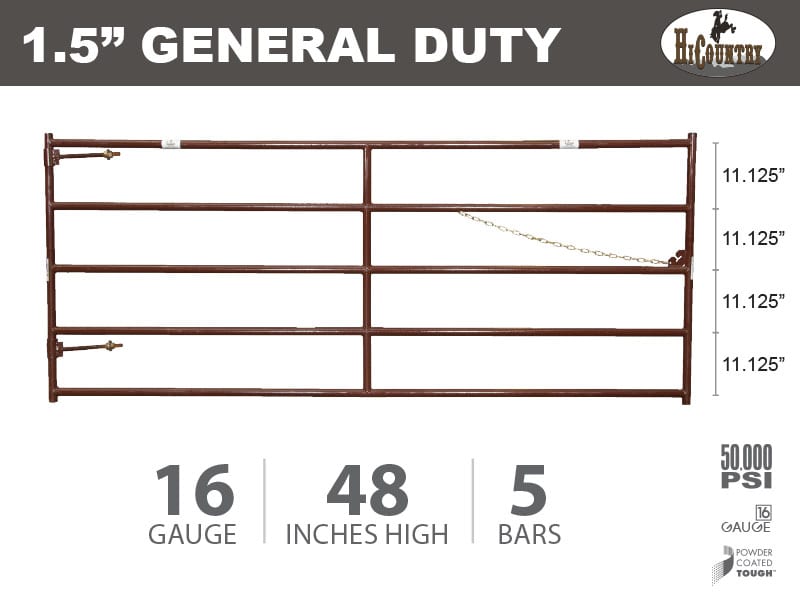

General Use Gate Specifications
- 1 1/2" x 16 gauge tubing
- patented T-Slot latch
- 32" chain
- 5 bars
- notched horizontals and center verticals
- square top
- 48" high
- powder coat finish

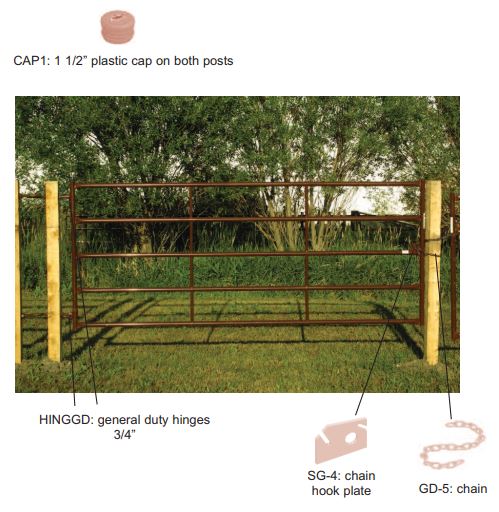

This is the gate post cap that fit inside the top of each post:
The latch comes with a chain hole for extra security

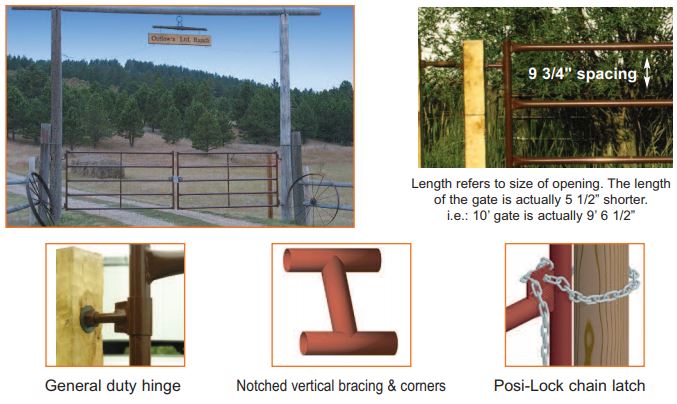

General Duty Gate Description
This gate, as the name implies is designed for general duty use which is for light to medium duty confinement of livestock. It's constructed out of 1-1/2" 16 gauge, 1017 high-carbon. high-tensile steel. The five rail gate is 48 inches tall and comes with the same chain latch and latch plate that's also included on the Combo Gate. Something I'd like to point out that we also added to our latch plate is this hole. It's ideal for locking the gate if we would put a padlock right here, now that gate is lockable. It also helps if you have cattle rubbing or licking, or horses rubbing or licking because it helps keep that gate securely latched and won't allow the chain to swing freely and loosely.
Something else I haven't mentioned yet is the rubber caps that we use on all our gates and panels for safety. We don't want any sharp edges here so we finish everything off with a nice rubber cap.
Get this great all-around general use gate from Barn World for your farm or ranch and rest assured the Hi-Qual quality will allow for years and years of strong use!

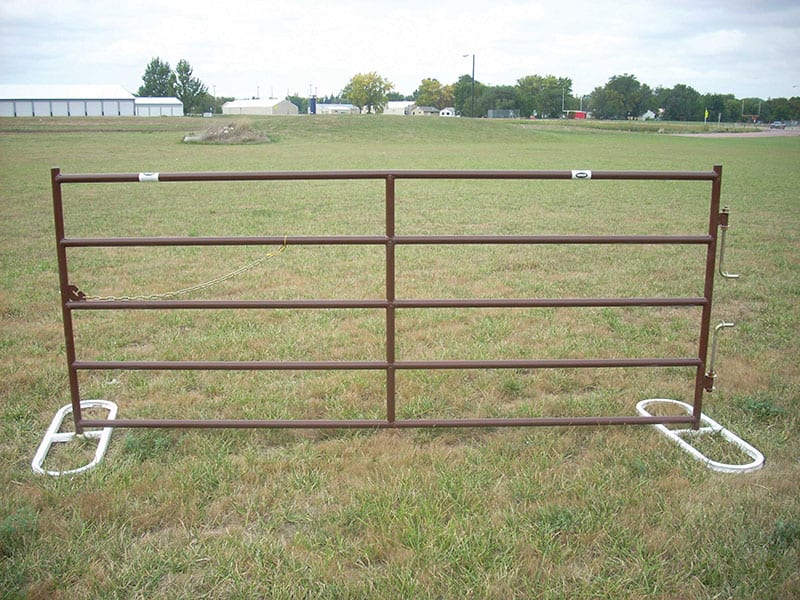

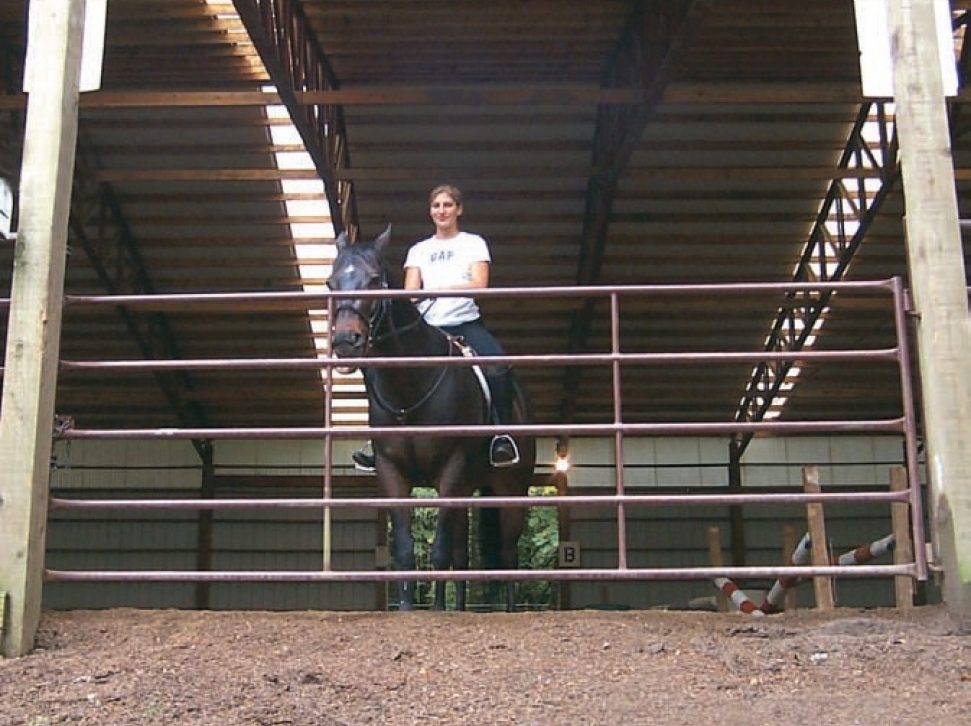

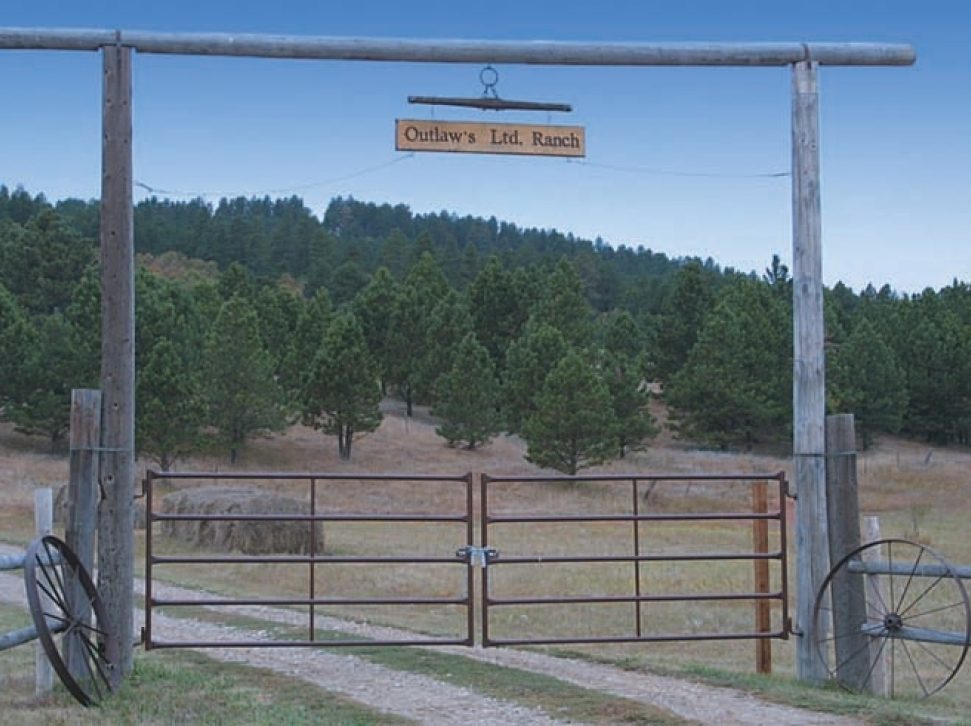

Pictures of the farm gate
Farm Gate Specifications
