Heavy-Duty Corral Panels for Horses & Livestock
These extra-strong corral panels provide a safe, reliable way to contain horses and livestock in corrals, pens, and working areas. Built for durability and daily use, each panel features a rugged square-top design constructed from 2" steel tubing with 14-gauge vertical posts and 16-gauge horizontal rails to withstand pressure from even the toughest animals.
Unlike standard livestock panels, these corral panels include notched verticals and fully welded horizontal rails for added strength, stability, and long-term performance. The popular 60" height helps prevent animals from leaning or attempting to climb, making them ideal for horses, cattle, and other large livestock.
Each panel comes equipped with loop-and-pin connectors for fast setup, tear-down, and flexible configurations. No additional hardware is needed, and panels can easily form straight runs, corners, or three-way connections. A durable powder-coated finish resists rust and corrosion, while tall mud legs improve ground clearance in wet or uneven conditions.
For added convenience, these panels are also available with bow gate walk-through options, allowing easy access to pens and corrals without moving panels.
Corral Panel Features
- Constructed from 2" diameter steel tubing
- 14-gauge vertical posts and 16-gauge horizontal rails
- Designed for heavy-duty livestock confinement
- Loop and pin connectors for quick assembly and 3-way connections
- Notched and welded vertical bracing for superior strength
- 60" tall, 5-bar, square-top design
- Optional bow gate walk-through panels available
- Rubber-capped vertical posts for added safety
- Powder-coated finish for long-lasting outdoor use
- High-tensile steel rated at 58,000 PSI

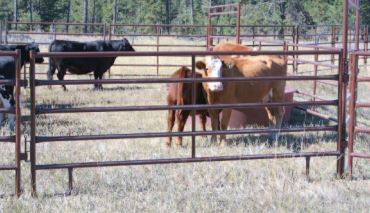

Pictures of Range Panels

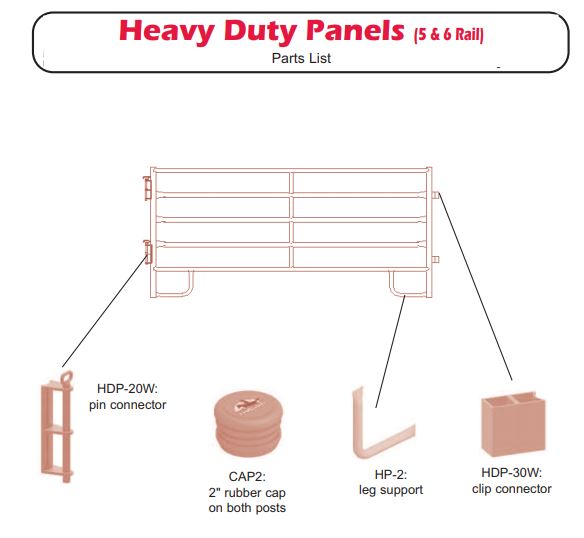

Pin and loop connector
Corral Panel - A heavy-duty range panel spec sheet:

Rubber caps on vertical posts provide a safe enclosure for both top posts

Pin and loop connectors

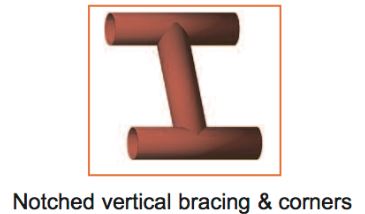

Notched vertical welds

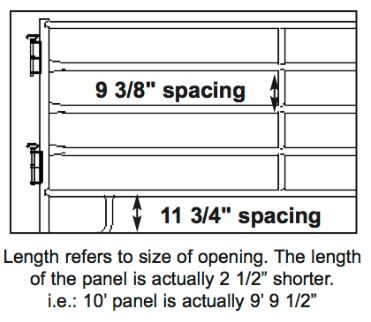

Rail spacing
